NiteVizor VN3-XTR

The NiteVizor VN3-XTR EXTREME features the latest developments in image acquisition technology for the serious hunter and sportsman.

Powered by VizorView, the VN3-XTR EXTREME delivers outstanding image quality day and night. The modular system fits virtually any rifle scope, transforming it into a powerful image acquisition device, 3including the ability to record full-HD video with audio, save images and produce time-lapse recordings.

When darkness descends, the powerful 850nm VizorView Infrared illumination – virtually undetectable to the naked eye – immediately illuminates the target area in front of where the rifle scope is aiming, allowing fast and clear visibility up to 400 meters (437yards) away*.

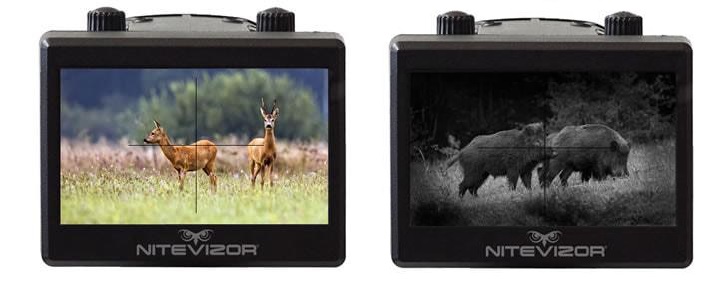

The infrared image is then transmitted through the optics of the scope via the eyepiece camera and displayed on the 4.3 inch, fully dimmable, LCD screen.

Fully connected, the NizeVizor VN3-XTR EXTREME allows those precious moments to be saved forever via the removable Micro SD card. WIFI connectivity enables the camera display to be wirelessly transmitted to an iPhone/iOS or Android device with the free app.

Extremely rugged, the system is suitable for use in the most extreme conditions and can be easily installed and removed in seconds. No adjustment is needed when the VN3-XTR EXTREME is mounted, as the camera feed is directly produced from the rifle scope.

SPECIFICATIONS

IR LED: 3-Piece 850nm VizorView Infra-Red Illuminator with IR Cut Filter
Lens: Full Color 1/3 CMOS
LCD: Dimmable Full-HD Color 4.3” with 16:9 aspect ratio
Video Size: Full-HD 1080P, 720p – 30FPS
Audio Recording: Yes
Still Image Size: 12MP, 10MP, 8MP, 6MP
Timelapse Function: Adjustable interval between 1-60 minutes
Distance Range at Night: 400m (subject to weather conditions and scope optics)
WIFI: Yes, with free downloadable app for iOS and Android devices
Display Language: English, German, French, Spanish, Italian, Russian & Japanese

Scope Clamp Size: 25mm, 28mm, 30mm & 35mm
Scope Sleeve Size: 35mm, 40-45mm & 45-50mm
Power: USB Type C Power Bank (included) or optional 4x 18650 rechargeable batteries
Video Output: PAL/NTSC
Micro SD card support: Upto 32gb (included)
USB Output: USB 2.0
Operating Time: Up to 15 hours (3 hours with constant IR use)
Operating Temperature: -10°C - +45°C
Weight: 690g excluding batteries
Water Resistance: Standard: IP66
Warranty: 2-year warranty
Conformity: CE, FCC & RoHs approved

Warranty Information

WARRANTY INFORMATION

All our products are covered by a 2-year warranty, valid from the date of purchase. The warranty does not cover any external damage to the device, its casing or external adjustable parts. The manufacturer has the right to render the warranty null and invalid in the following cases:

If the device has been modified or tampered with
If the device has been dropped or has marks of mechanical or physical damage
If the device has been tampered with by a non-authorized NiteVizor service center or third party
If the device has been damaged as a result of fire, flooding or other natural disasters
If the device has been damaged as a result of water or other substances getting inside the device
If the serial number of the device has been modified, rubbed off, removed or is illegible, or otherwise tampered with, either physically or electronically

Please contact us if you require any support for your device.
